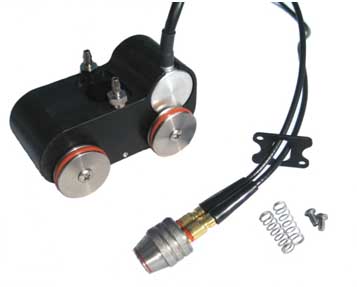

The B-Scanner

The B-Scanner is a small, lightweight single-axis encoded scanner for manual B-scans. This durable scanner will scan 4 inch or greater diameter pipe circumferentially and the spring loaded transducer will adjust its height to the surface.

Features

• Scans pipe with 4 inches or greater diameter circumferentially
• Scans at up to 500°F (intermittently)
• High resolution encoder (<0.001″)
• Strong magnetic wheels
• Self adjusting, spring loaded transducer mechanism
• Irrigation ports
• Compatible – connectors available for most UT systems

Includes

• High temp 5 MHz transducer, 3/8″ diameter
• 10 ft encoder cable with connector for your choice of UT system (compatible with most)
• 10 ft dual UT cable
• Shipping case

Accessories

• Compatible with AUT’s line of BSP transducers
