The Nano Scanner

NANO – Phased Array/TOFD Hand Held Scanner

The Nano Scanner – Manual UT Scanner – The NanoScan is a single or dual probe Phased Array scanner with advanced ultrasonic inspection capabilities that can perform TOFD, B and C-scan and Short Range Guided Wave (SRGW) scans. It is a very small, low profile and lightweight encoded scanner with magnetic wheels which is sold in 4 different kit configurations that will allow you to perform single or dual probe setups and also nozzle inspection. The nozzle attachment also enables you to perform SRGW scans on a storage tank’s annular ring from the outside at the chime area. The NanoScan works well for circumferential and axial scanning and is designed to hold many type of conventional and advanced probes & wedges. The probe forks are adjustable and come standard with 5mm and 8mm Olympus style probe holders plus cone set screws for indented probe.

Nano - TOFD/PAUT

Nano – TOFD/PAUT

Nano Scanner

Nano Scanner













Nano Nozzle Scanner

Nano Pipe Scanner

Nanoscan

Nanoscan

Nano Nozzle Scan

Nano Nozzle Scan



FEATURES

  • Price – Lowest cost magnetic wheel scanner
  • Design – Holds most Olympus phased array and TOFD probes/ wedges
  • Magnetic wheels – Strong, allows vertical climbing.
  • Encoder – High res, 0.0015″ (.04mm), IP65
  • Compatible – Works with ProScan, Omniscan, TD Scan, Pocket UT, PRAGMA, GE, Zetec, VEO, and more
INCLUDES
  • Kit 1 – Encoded truck and gimble
  • Kit 2 – Encoded truck, gimble, nozzle attachment

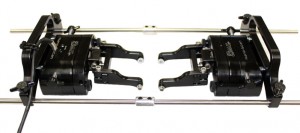

  • Kit 3 – Encoded and idler truck, 2 gimbles
  • Kit 4 – Encoded and idler truck, 2 gimbles, nozzle attachment
  • Spare parts kit
  • Travel case
ACCESSORIES
  • Short range guided wave probes
